hd PLC

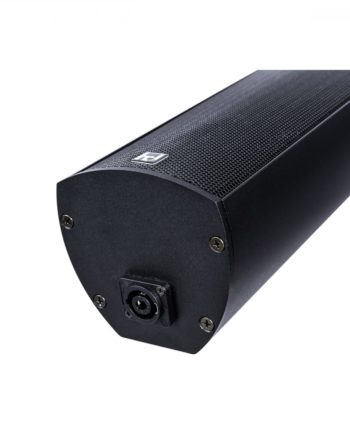

The hd PLC Cardioid expansion module is available for demanding applications in mobile and fixed installations, effectively attenuating the radiated backwards frequency components by up to 20 dB. The further optimized directivity of the line radiator by the cardioid module thus considerably reduces the feedback susceptibility in the low-mid range and at the same time improves speech intelligibility, since no sound energy is radiated diffusely into unwanted areas. The hd PLC module is mounted directly on the back of the hd PL-Series LineArray Stick and operated via a separate amplifier channel. Cardioid or hypercardioid characteristics can be easily retrieved via the corresponding DSP preset. In addition to the reduction of the back radiated sound energy, the hd PLC Cardioid module also extends the sound pressure in the low midrange in the audience direction. This makes the sound even more punchy and dynamic with the same line length. A Speakon jack is located on the bottom plate for connecting inputs in mobile applications. A 35 mm flange allows the standalone use as a main speaker on a tripod.
